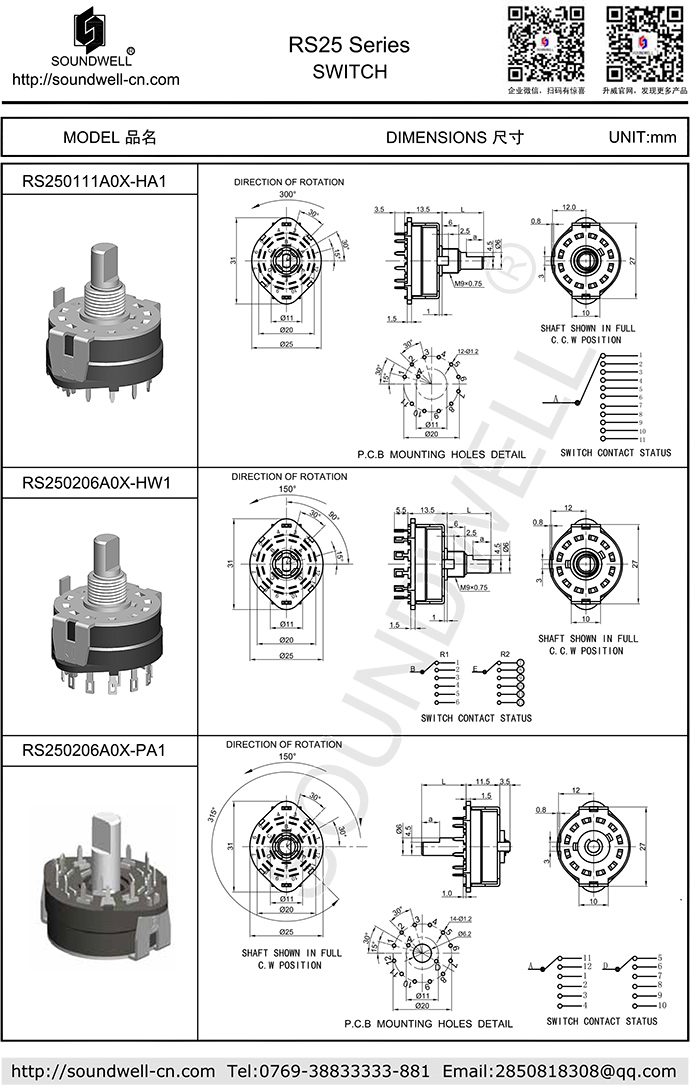

| Multiple Switch Model： | RS25 series |
| Name： |
RS25 Metal Shaft Rotary Route Switch |
| Main Specifications: | Dimensions: 25mm Rated power: DC 30V 0.3A Contact resistance: 50mΩ Max Number of positions: 2～12 Operating temperature: -10℃～70℃ Rotational life: 10,000 cycles Min |
| Product Features： |
2~12 positions available with clear sense of clicks; Available in various shaft options; |
| Applications： |
Home appliances such as micro- wave ovens, fans as well as audio devices, health care systems or other electronic products; The main functions are function switching, temperature regulation, timing and speed regulation. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 200~1000gf.cm
2. Step angle: 30°±3°
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 50mΩ Max
2. Rated power: DC30V 0.3A
3. Number of detent: 2～12 detents
4. Insulation resistance: 100M? 1 Minute at DC 500V
5. Dielectric voltage: 1 Minute at DC 500V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
