| Potentiometer model： | RJ16 series |
| Name： | Metal Shaft Joystick Potentiometer |
| Main Specifications: | Dimensions: 24mm； Rated power: 0.0125W； Operating angle: 60° Max； Operating temperature: -10℃～70℃； Rotational life: 100,000 cycles Min； |
| Product Features： |
Long life with smooth operation; Excellent offset precision. |
| Applications： |
Suitable for game controllers, electronic toys field; The main functions are game operation and menu selection. |
ONE、MECHANICAL CHARACTERISTIC
1. Lever Operating Force: 150～350 gf
2. Operating angle: 60° Max
TWO、ELECTRICAL CHARACTERISTIC
1. Rated power: 0.0125W
2. Maximum operating voltage: AC 50V DC 5V
3. Insulation resistance: 100M? 1 Minute at DC 250V
4. Dielectric voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Operating life: 100,000 cycles Min

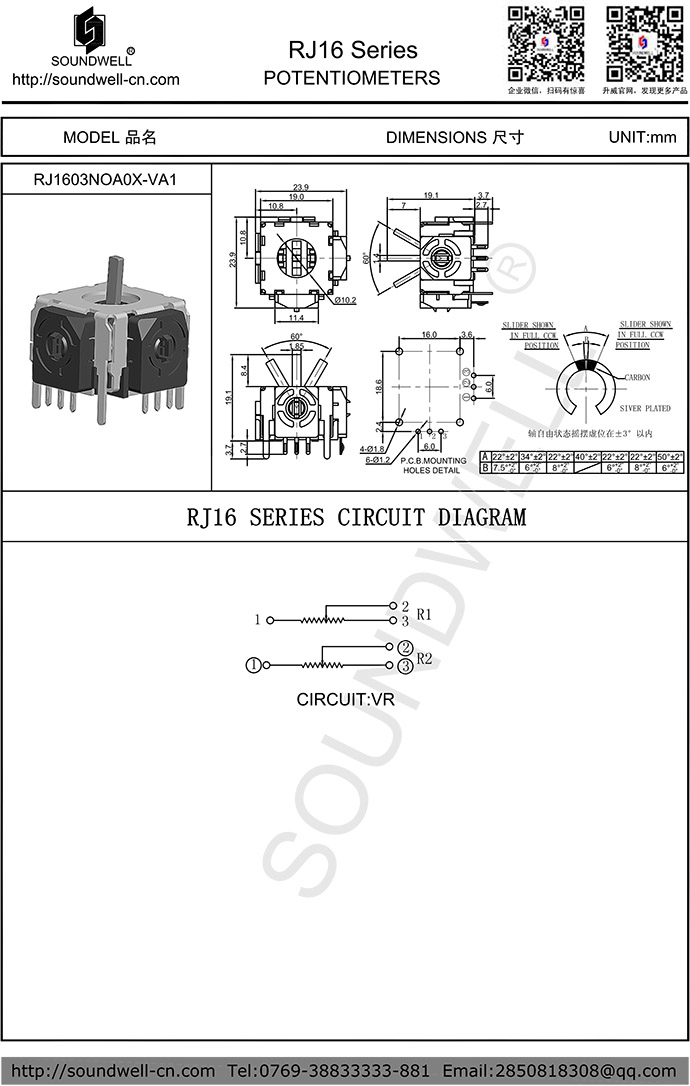

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
