MA52 Rotary Magnetic Encoder

Series：

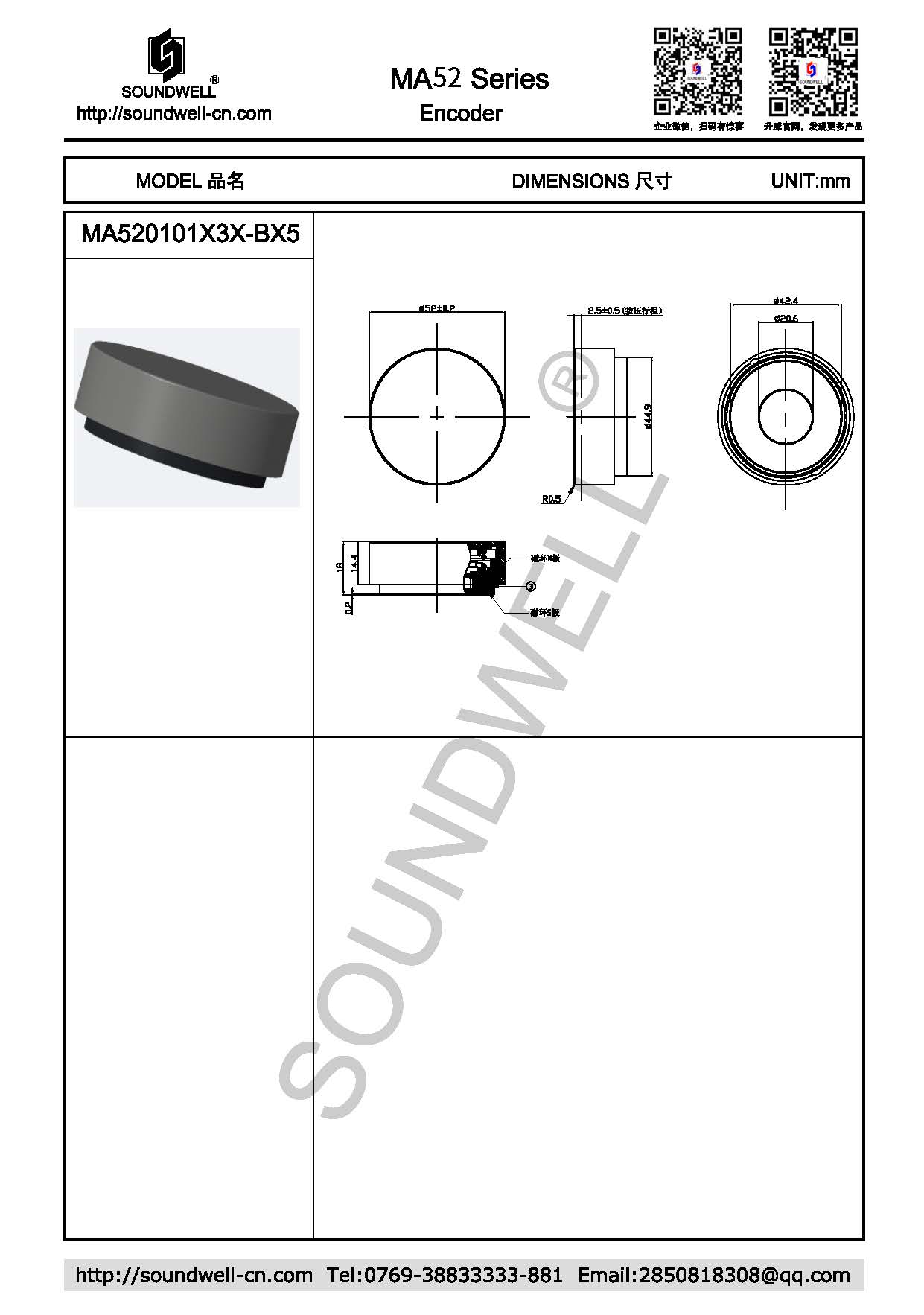

Format：See the following profile

Specifications　　

Encoder model:	MA52 series
name:	MA52 Rotary Magnetic Encoder
Main specifications:	Dimension: 52mm*18mm； Rated power: DC 5V 15mA; Number of detent: 24; Resolution: 128 pulses/360°; Working temperature: -25℃~90℃; Rotational life: 50,000 cycles Min; Switch operating life: 100,000 cycles Min
Features:	Separate press knob controller; No need to weld or plug, positioning can be used;
Application areas:	Integrated stove and other household appliances;

MA52 Product specification

ONE、MECHANICAL CHARACTERISTIC

1. Rotational torque: 100-300gf.cm
2. Step angle: 15°±2°
3. Switch operating force: 350~650gf

TWO、ELECTRICAL CHARACTERISTIC

1. Rated power: DC 5V 15mA
2. Pulses: 100
3. Number of detent: 24
4. Insulation resistance: 100M? 1 Minute at DC 250V
5. Dielectric voltage: 1 Minute at AC 300V

THREE、ENDURANCE CHARACTERISTIC

1. Rotational life: 50,000 cycles Min
2. Switch operating life: 100,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
